Motor system MD 11
Dental Motorsystem MD 11A motor system that is able to perform every step in implantology perfectly.
Motor system for oral surgery and Implantology
A motor system capable of perfectly accomplishing any step of procedure in Implantology
4 programs for drilling, cutting threads, screwing in the implant and placing the cover screw.
Motor speed range of 300 – 40’000 rpm.
Integrated pump system for cooling the instrument to avoid tissue damage.
70 Ncm of maximum torque with the 20:1 contra angle and graphical, real time torque control.
Sturdy, high quality design and finish.
Handpiece 1:1 and contra angles 16:1, 20:1, 20:1 LED, 32:1 and 70:1 are available.
No time? We save it for you!
Highly advanced motor system for various usage in oral surgery and implantology.
Logical handling
- 1 function per key
- Acoustic feedback
Open the pump tray
- Frontal access
- No shifting of the device
- Easy unlocking
4 programs
- Drilling
- Thread cutting
- Screwing in the implants
- Placing the cover screw
Motor connection
- Front access
- High quality socket
Tubing set mounting
- Very good visibility
- Easy mounting
- Closing sensor
Peristaltic pump
- Tray opens smoothly
- Quiet pump motor
Torque control
- Automatic torque limiter
- Automatic stopper
Big display
- High contrast
- All settings at a glance
- Real time torque
- Real time speed
Peristaltic pump
- Tray opens smoothly
- Quiet pump motor
Motor connection
- Front access
- High quality socket
Ergonomic casing
- Compact housing
- Easy to clean surfaces
Special features
The motor system MD 11 comes with three special features. The all new separate program for thread cutting as well as the compartment with integrated tubing bracket and the real-time graphical representation of the torque improve the motor systems usability significantly.

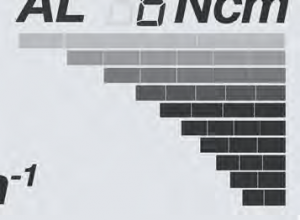

The real-time graphical representation of the actual torque recognizes varying resistors during use and gives a feeling for occurring forces.
In version 2.0, the logic of keyboard operation has been revised and now offers even higher comfort while setting up your device.
A new, sperarate program for thread cutting has also been added. With the HP key (handpiece) here are handpieces with a gear ratio of 1:1, 16:1, 20:1, 32:1 and 70:1 selectable.

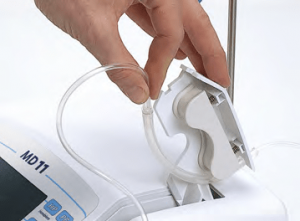

The compartment with the integrated tubing bracket opens smoothly and the tubing set can be fitted very easily all with one hand.
Suitable accessories
Highly advanced motor system for various usage in oral surgery and implantology.
Contra angle 20:1
Article number: 5053
All handpieces and contra – angle handpieces are equipped with a cooling clip for the internal and external cooling.

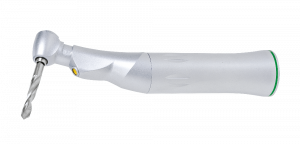

Contra angle LED
Article number: 5052
The 20: 1 LED contra-angle brings “the light to the point”.
Excellent lighting conditions facilitate the way to
perfect treatment results.
Handpiece 1710nou
Article number: 1710
The solid construction of the products guarantee a long service life and ensure trouble-free reprocessing.

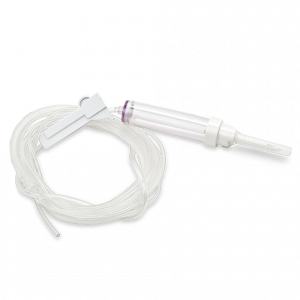

Tubing-Set
Article number: 1706
Proven quality accessories will give you reliable safety and high application efficiency.
