OUR VISION OF THE FUTURE DIGITAL WORKFLOW

In the past years prosthetic manufacturing has completely changed and new materials were developed. However, the implant interfaces has remained unchanged for the last 30-40 years, leading to a mismatch between implant connections and modern prosthetic manufacturing.

TRI® vision was to connect these two worlds by thinking the other way around. In regards to the precision of today’s milling technologies and from a CAD/CAM productions’ point of view we have created the matrix® implant system, where no abutment and cementation is needed.

A technology ahead of its time, prepared to bring digital implantology to a new dimension.

MATRIX® CONNECTION DESIGNED FOR DIGITAL WORKFLOWS

PORTFOLIO
BONE- AND TISSUE-LEVEL IMPLANT

The matrix® implant system consists of a bone- and a tissue-level line with only one connection, by simplifying the prosthetic workflow to the max and guaranteeing the highest materials and indication flexibility. The system differs between the platform ø 3,7mm (P37) color-coded in gold and platform ø 4,5mm color-coded in silver for both, bone- and tissue-level line.

MATRIX® POWERBASE
A WORLD-CLASS CONNECTION DESIGNED TO SUPPORT ZIRCONIA ON TITANIUM

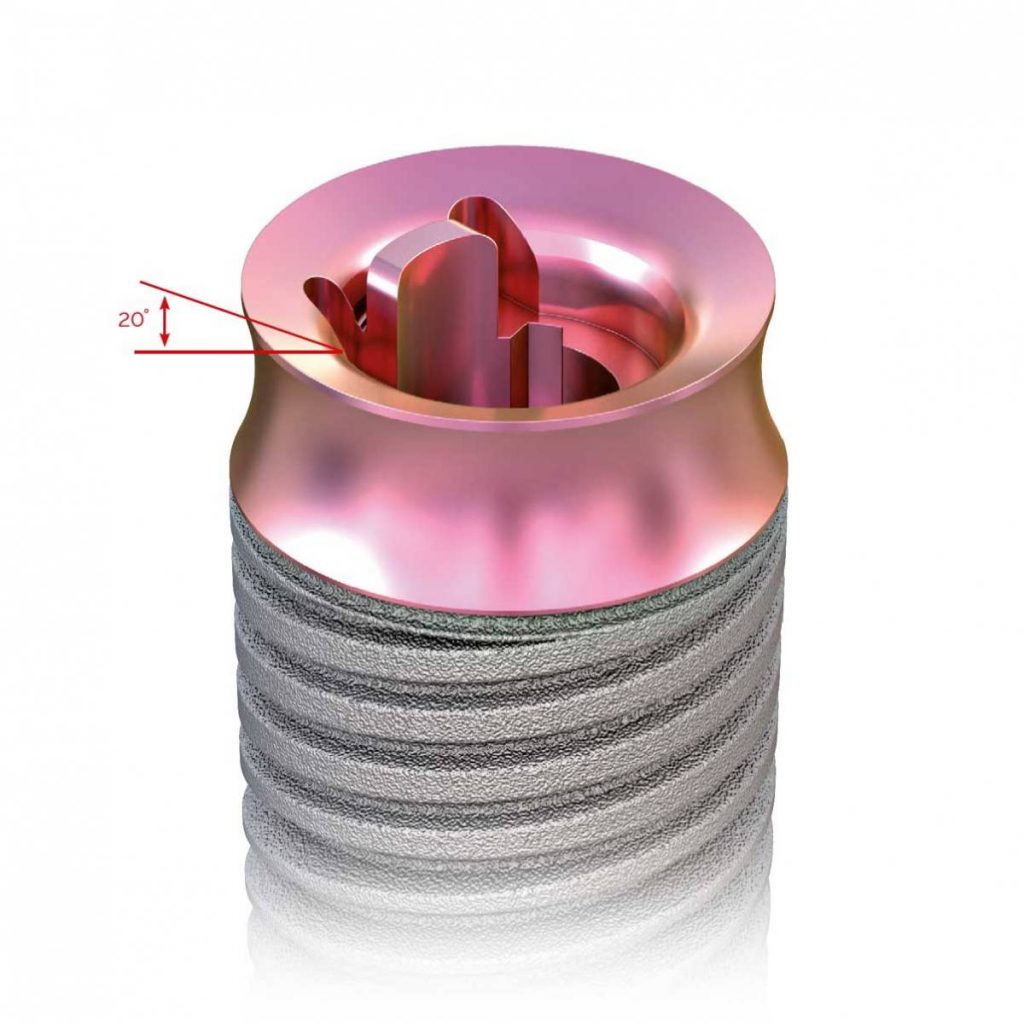

matrix® PowerBase and its 20° degree internal flat connection, maximizes the surface area to support prosthetic restoration directly on the implant. The world-class connection provides self-centering properties for ideal handling and fit and allows high divergences (50°) between implants.

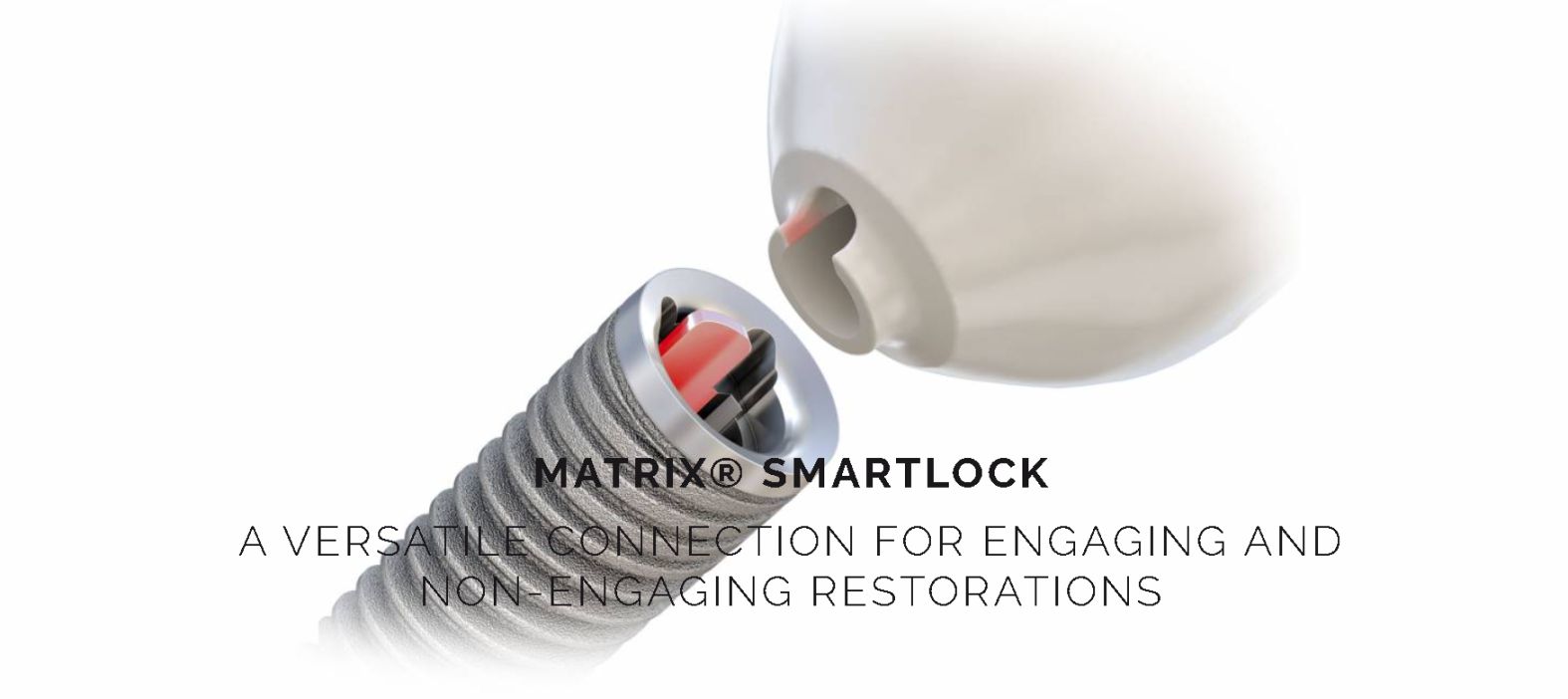

matrix® SmartLock is a self-locking system for automatic positioning, which allows only one single position for crowns and a non-engaging position for multi-unit restorations. It consists of two big vertical rotation blockers with 1.2mm distance for easy milling of the prosthetics and tactile feedback.

DEDICATED MILLING STRATEGY FOR MATRIX® CONNECTION


CONCAVE TISSUE-LEVEL EMERGENCE PROFILE FOR INFINITELY MORE ESTHETICS

The matrix® tissue-level implant comes with a modern emergence profile and a unique concave design. The implant line features a pink anodized neck for optimized translucency and supports modern surgical procedures, such as sub-crestal placements. Ideal for minimal invasive procedures and an increased biological width, matrix® it’s better than ever in guaranteeing high esthetic results and longevity.





BONE-LEVEL PLATFORM SWITCHING

The matrix® bone-level implant features a 20° shoulder for high divergence bridge restorations and integrates platform-switching to preserve the crestal bone.

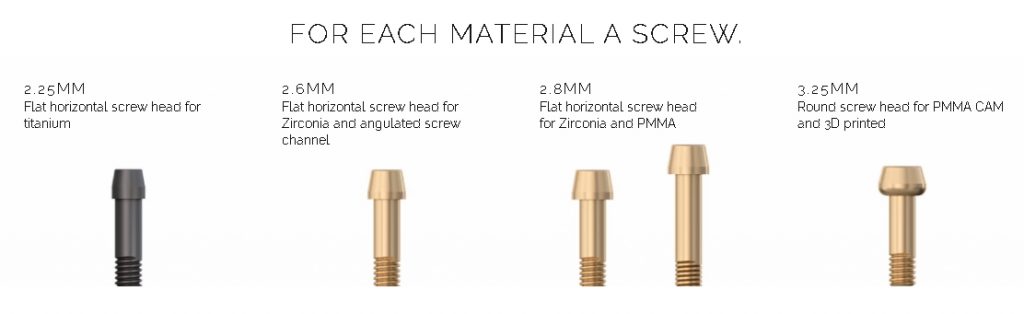

INTELLIGENT SCREW SYSTEM FOR ALL MATERIALS AND INDICATIONS.

matrix® SmartBolt consists of three different screw heads, designed for material-specific milling strategies to ensure a precise fit. The specially treated screw surface guarantees increased hardness, scratch-resistance and fatigue strength. The sterile screws are gold anodized for higher esthetics with translucency zirconia.






METALS

Narrow screw-head for metal restorations to minimize diameter of screw-access hole






CERAMICS

Medium-size screw-head optimized to support zirconium.






POLYMERS

Round screw-head to support provisional polymers with ideal force distribution.

MATRIX® PROFLEX
HIGHEST DESIGN FLEXIBILITY IN LOCAL PRODUCTION

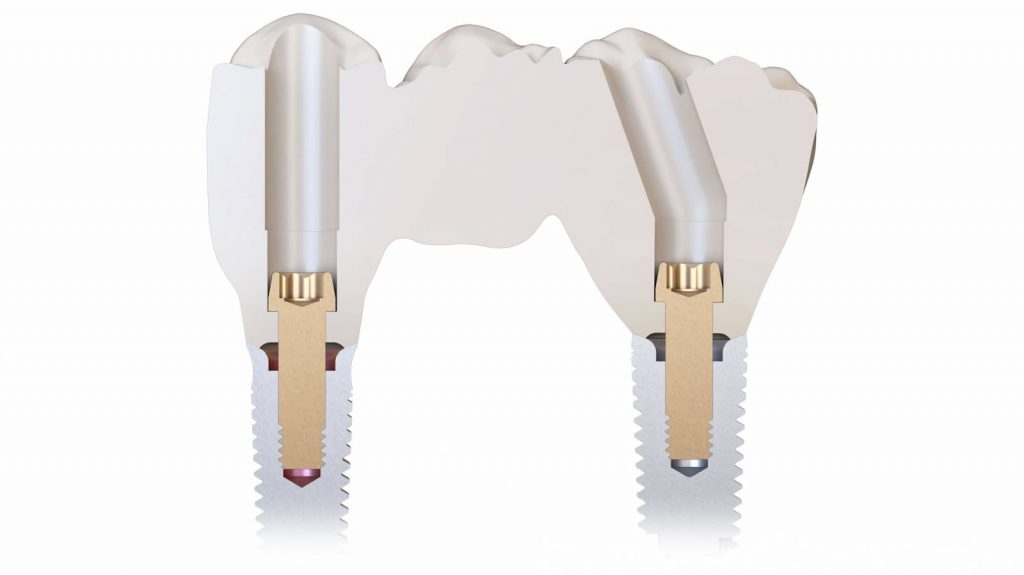

matrix® ProFlex allows implant divergence up to 50° and 20° angled screw channels. The compact design facilitates the placement of fully anatomical crowns without adjustment and supports easy impression taking for angulated implants.



ALLOWS IMPLANT DIVERGENCE UP TO 50° AND 20° ANGLED SCREW CHANNELS.

PATIENT-SPECIFIC & INDIVIDUAL EMERGENCE PROFILE

matrix® allows to create 100% digital, chairside manufactured patient-specific emergence profiles by considering the biological shape and transferring the design 1:1 throughout the whole treatment process (healing, provisional and final restoration). With matrix® any design and shape on any material is possible and guarantees a full- anatomic and high esthetic gingiva management.

SAME EMERGENCE PROFILE FOR HEALING, PROVISIONAL AND FINAL RESTORATION.

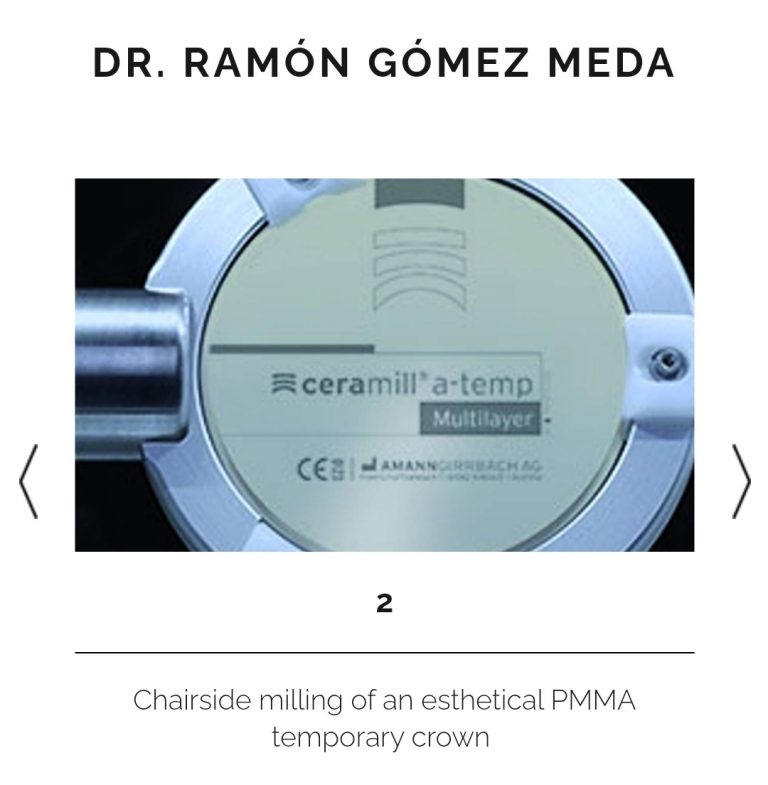

INDIVIDUALIZED HEALING COLLAR BY DR. RAMÓN GÓMEZ MEDA

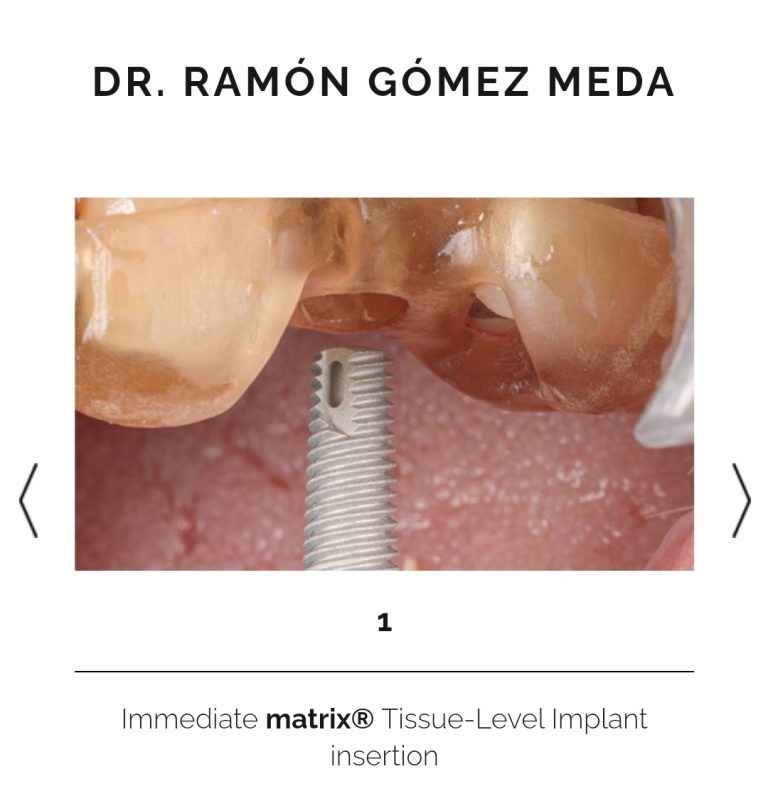

Placement of a matrix® Tissue-Level implant

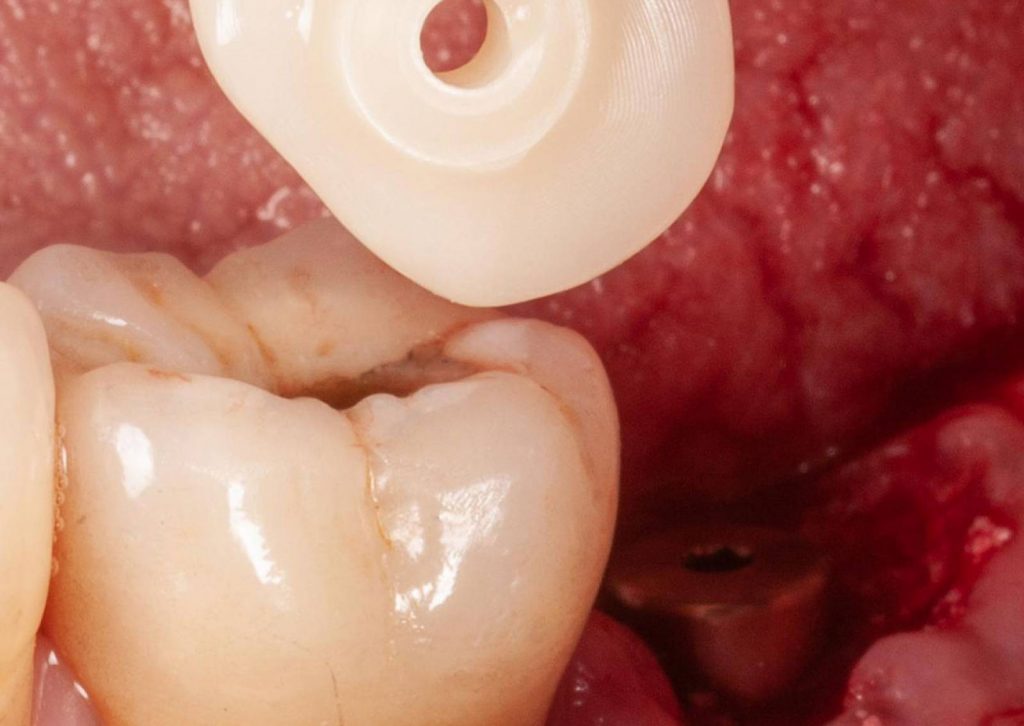

A patient-specific healing collar milled chairside with an Amann Girrbach milling machine
The patient-specific healing collar in-situ
TRI® PERFORMANCE CONCEPT
10 YEARS CLINICALLY PROVEN IMPLANT SURFACE AND TAPERED BIOMECHANICAL DESIGN


TRI® BONEADAPT FOR IMMEDIATE STABILITY
BODY DESIGN

The implant body was designed to provide maximum bone adaptation across the different bone regions along the implant. At the top of the implant, the reverse-tapered neck design reduces forces on crestal bone. The groove right below its neck into which all three threads lead, allows a better force distribution under the bone crest.

Furthermore, the macro-threads design of the cervical area exhibits a square-thread pattern which minimizes stress and cortical load, thus better protecting the cortical bone. The well-proven standard 60 degree threads finally increase bone surface area in the spongiosa for optimal bone-to-implant contact.

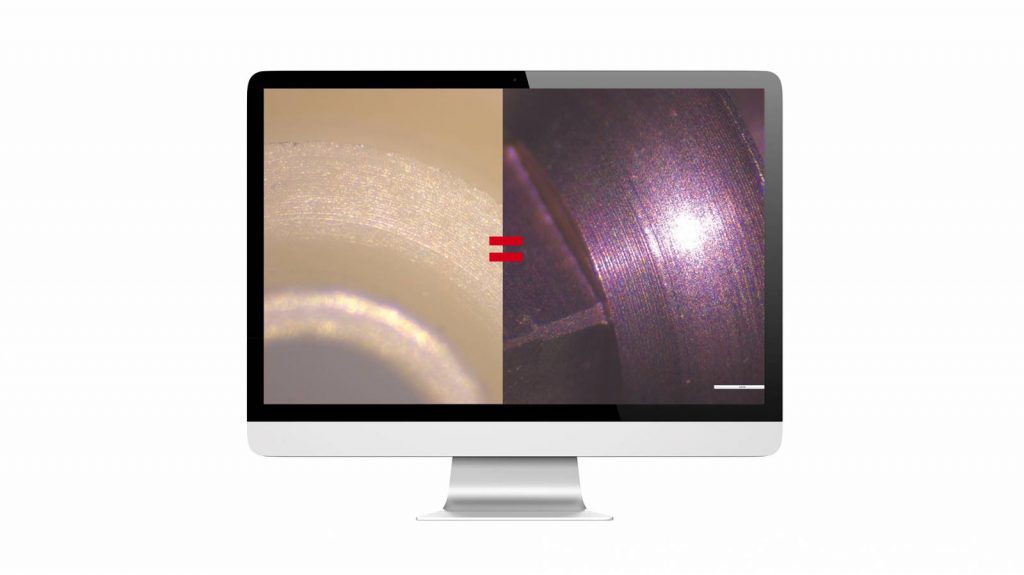

TRI® SBA SURFACE FOR PREDICTABLE OSSEOINTEGRATION

The TRI® SBA (sandblasted, large grit, acid-etched) surface is one of the industry gold standards for more than 20 years. It is created by blasting the implant surface under pressure with corundum particles. In the final step the surface is acid-etched twice in order to attain a medium roughness.

A macrostructure of 20-40 μm and a micro structure of 2-4 μm as an ideal basis for excellent osseointegration. This structure has been proven by numerous clinical studies for this surface type.

TRI®+ DIGITAL SOLUTION
CONNECTION TO ALL OPEN DIGITAL WORKFLOWS WITH LAB-SIDE AND CHAIRSIDE MILLING

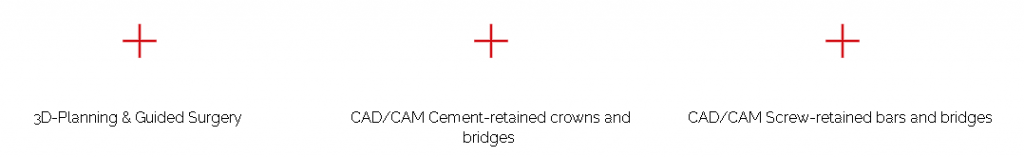

TRI®+ Digital Solutions guarantees a universal implant open interface to leading technology partners in digital dentistry. In contrast to numerous digital locked systems, TRI® helps to create more transparency and eliminate all barriers to their respective treatments. TRI®+ Digital Solutions offers a wide range of indications via 3D planning, guided surgery, CAD abutments, CAD / CAM screw- retained and cement-retained restorations or modern treatments.

5 STEP WORKFLOW

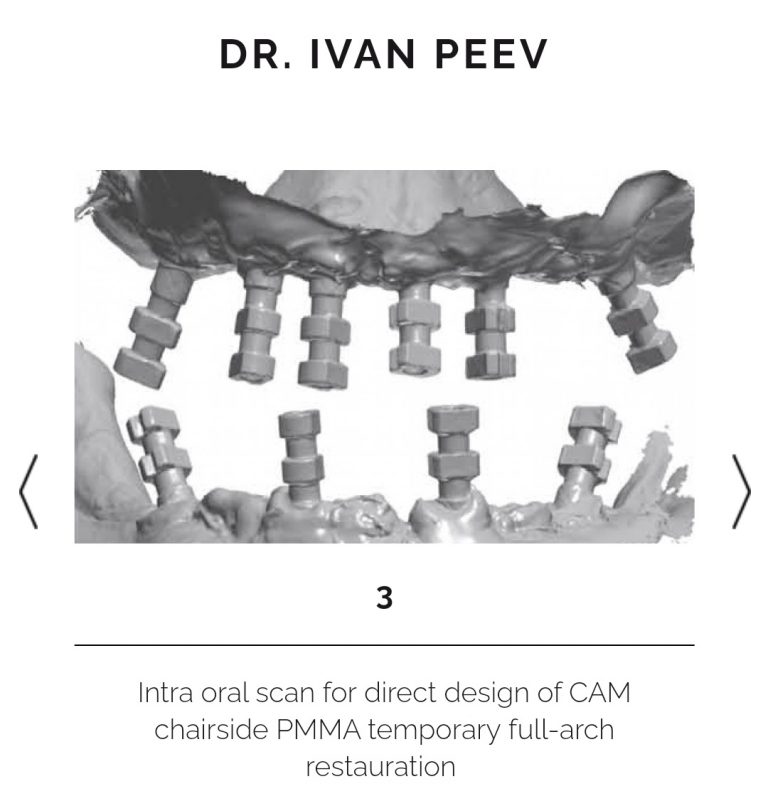

SCIENTIFIC EVIDENCE

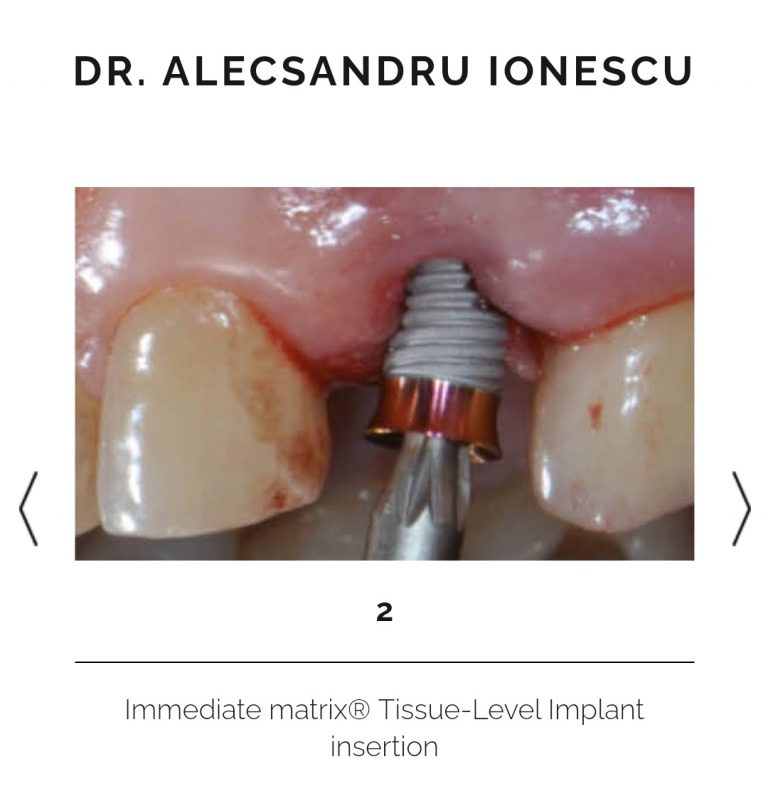

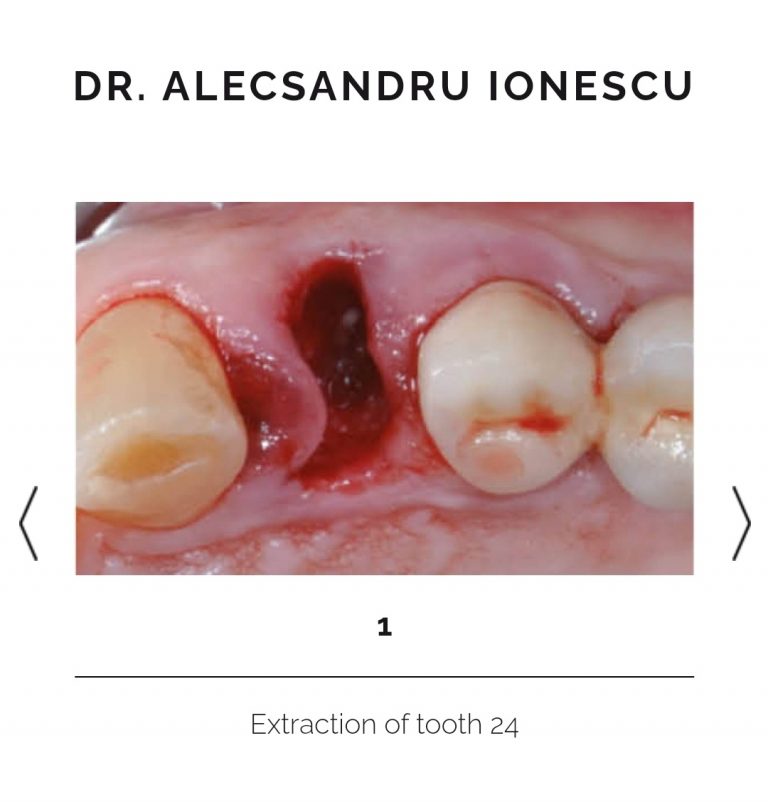

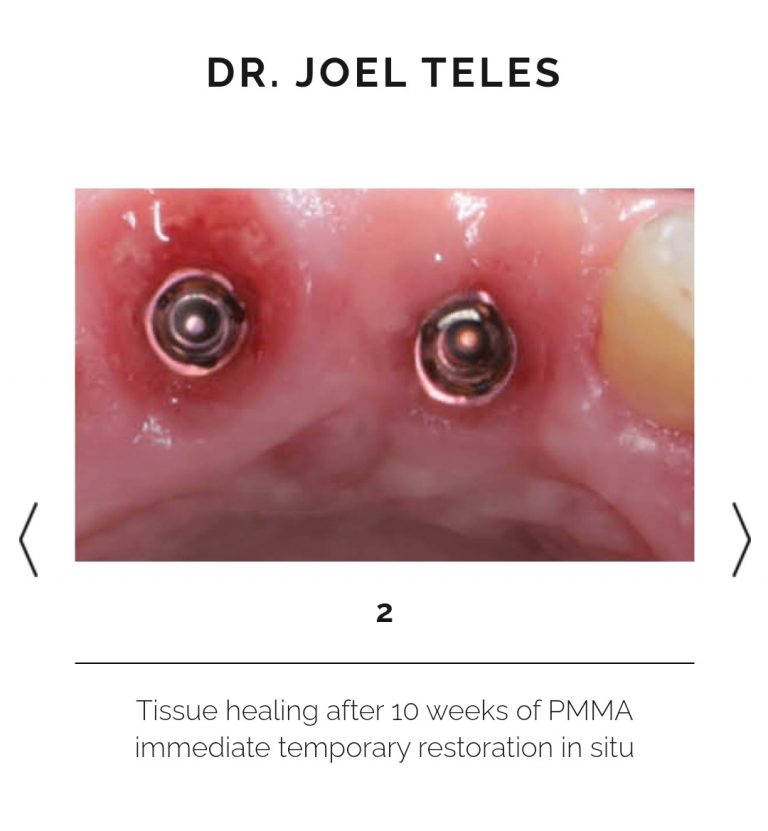

STUDIES, CASES & FEEDBACKS

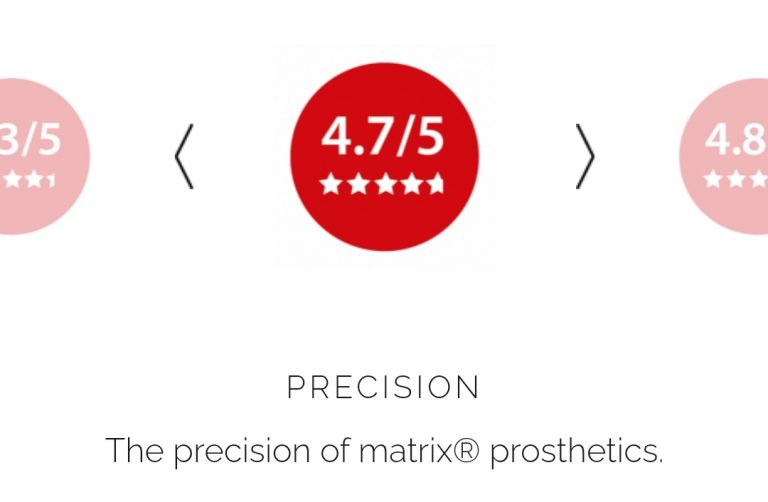

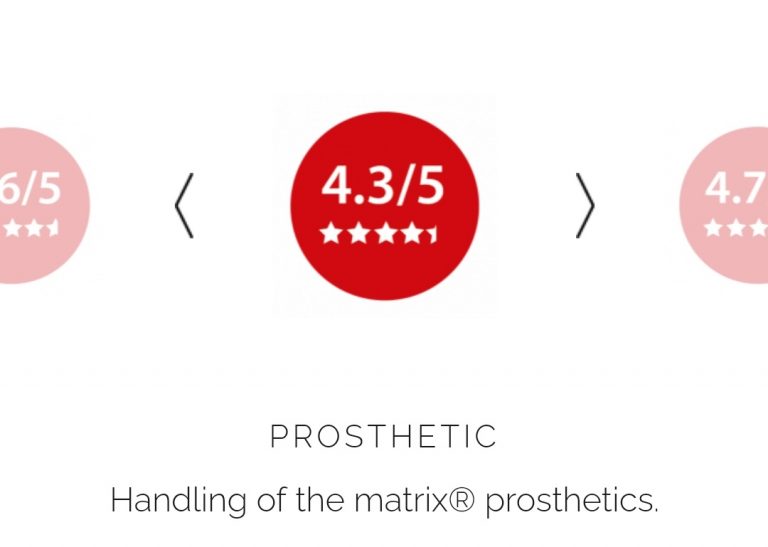

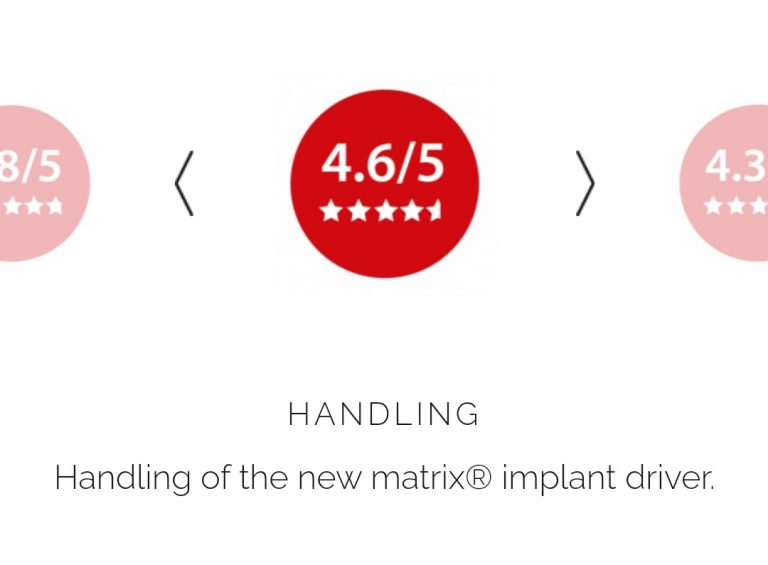

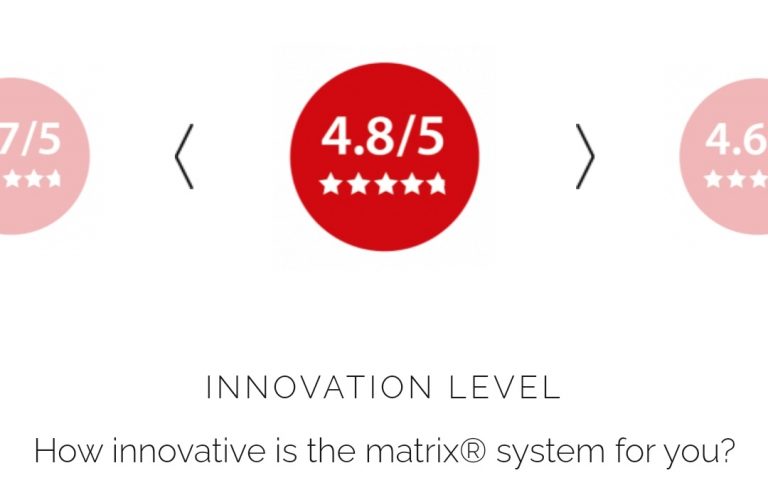

KOL’S RATING THE MATRIX®

TRI® is proud to have achieved such a strong rating and received an amazing feedback from our KOL & Expert involved in the First Patient-In Phase of the matrix®. This is a further proof that the matrix® is a disruptive technology and will bring digital implantology to a new dimension!
